Eldorado® Handrail

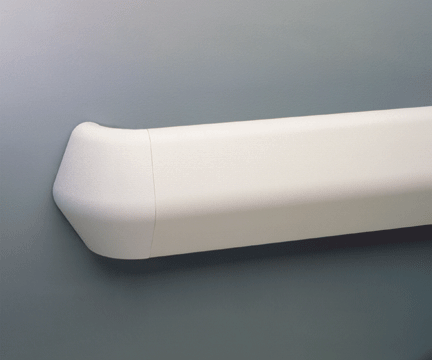

Our Eldorado® Handrail has been built with safety, ergonomics, wall protection, and aesthetics in mind. This handrail features an easy-to-grip design that complies with Life Safety Code recommendation of 1 1/2" diameter gripping surface. This handrail also features an aluminum construction to help prevent wall damage from everyday traffic, carts, and more. Designed with aesthetics in mind, our Eldorado® Handrail also features a unique shading effect that comes to life under indoor lighting.

Eldorado® Details

• Aluminum: 12' long, 0.125" thick
• Vinyl: 12' long, 0.080" thick
• Weight: 1.2 lbs./ft.

Eldorado® Certifications

• Fire Resistance: Tested in accordance with ASTM E-84 and NFPA 101 for Class A materials.
• Flame spread index 5, smoke developed index 180 maximum.
• Impact Resistance: 25.4 ft. lbs. inch of notch IZOD (ASTM D-256)
• Bacteria Ban: Incorporated in vinyl compound. Tributyl Tin.

Use item selector at the top of the page to choose from various components, including:: Right or left returns, outside and inside corners, and brackets.
